Automatic Bottle Blowing Equipment PET Bottle Blow Molding Machine

The bottle preform picking,bottle preform loading, bottle picking, and bottle arrangement are all automatically completed by robotic arms to avoid intermediate pollution. The mold is made of magnesium aluminum alloy, and the mold replacement is fast. Key components such as PLC, servo positioning system, cylinder, solenoid valve, blowing valve, and action valve are all selected from well-known foreign manufacturers. The switch on/off, heating, and time adjustment of the equipment can be carried out through the SIMATIC HMI operation panel.

Inquiry

Write a Review

Technical Parameter

Capacity	1300～6000BPH (Customized according to customer's production capacity and bottle type)
Main Components	Bottle blowing host + heating furnace, automatic bottle preform feeding machine, bottle preform sorting machine
Scope of Application	PET bottles

Main Features

Automatic Bottle Blowing Equipment PET Bottle Blow Molding Machine 5

The bottle preform picking,bottle preform loading, bottle picking, and bottle arrangement are all automatically completed by robotic arms to avoid intermediate pollution.

Automatic Bottle Blowing Equipment PET Bottle Blow Molding Machine 6

The mold is made of magnesium aluminum alloy, and the mold replacement is fast.

Automatic Bottle Blowing Equipment PET Bottle Blow Molding Machine 7

Key components such as PLC, servo positioning system, cylinder, solenoid valve, blowing valve, and action valve are all selected from well-known foreign manufacturers.

Automatic Bottle Blowing Equipment PET Bottle Blow Molding Machine 8

The switch on/off, heating, and time adjustment of the equipment can be carried out through the SIMATIC HMI operation panel.

Mold closing mechanism: adopts servo motor for mold opening and closing, hyperbolic arm mechanical mold locking, four plate forming, double-sided pressurization, and has good stability.

Transmission mechanism: The main transmission adopts high-precision servo positioning and flange type reducer, which works continuously without displacement, without shaft breakage, and has good stability.

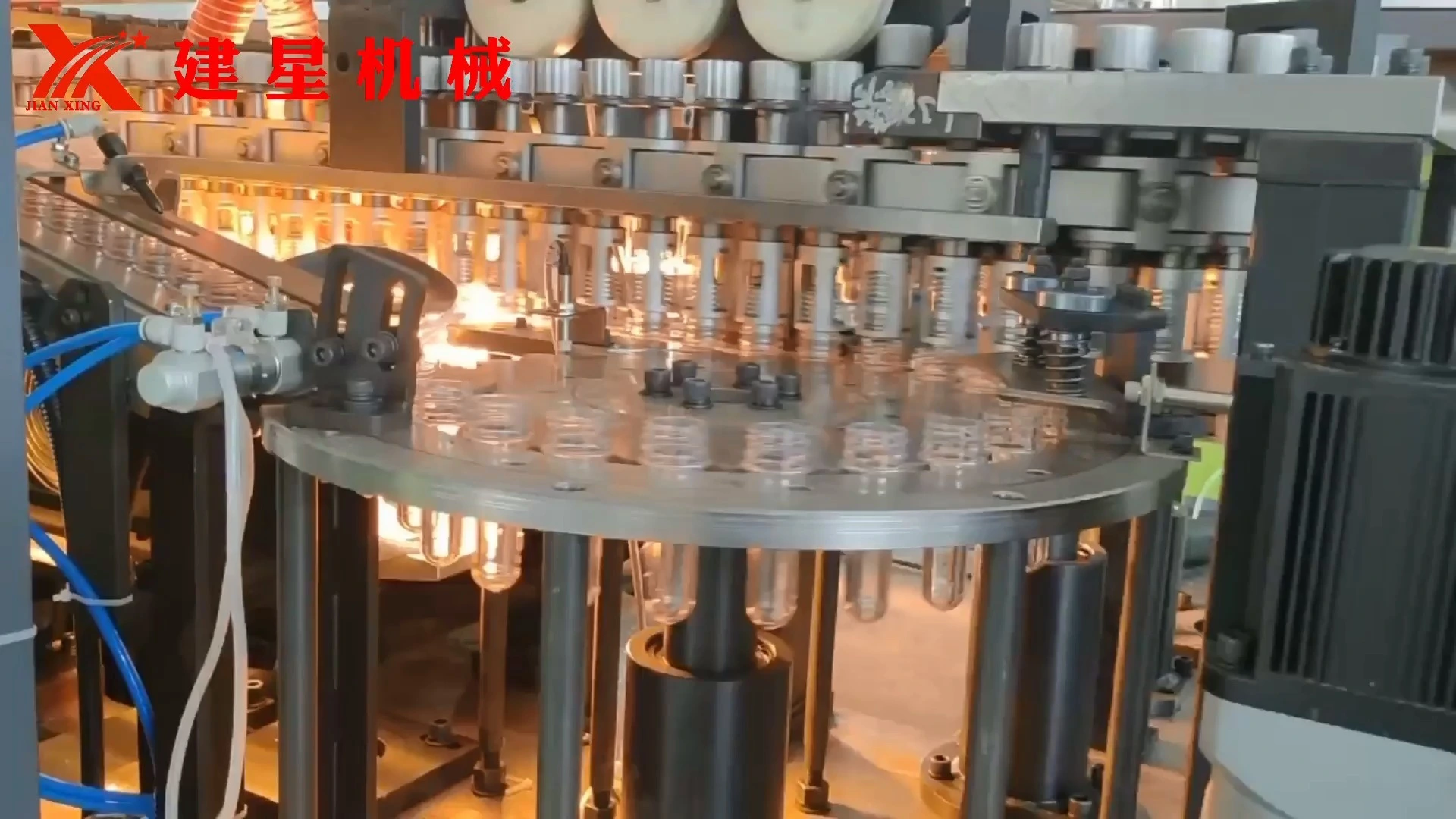

Heating mechanism: The unique variable frequency fan constant temperature heating box is equipped with a dual protection system of circulating air cooling and water cooling, ensuring that each bottle preform is evenly heated and the bottle mouth is not deformed during bottle preform heating, resulting in a high rate of finished product.

Low energy consumption: With the valve dedicated to international top enterprise Parker, the single chamber production capacity is significantly increased by 30% and low pressure gas consumption is reduced; Single channel bottle preform feeding and variable distance bottle blowing greatly reduce the power consumption of bottle preform heating.

Main Configuration

Pneumatic Cylinder	FESTO (Germany）
Pneumatic Cylinder Solenoid Valve	FESTO (Germany）
High-pressure Solenoid Valve of Bottle Blowing	Eugen Seitz（Switzerland）
High Pressure Regulating Valve	EWO （Germany）
High Pressure Flow Throttle Valve	Parker （USA）
PLC	Mitsubishi (Japan)
DA Module Proportional Output Control PLC	Mitsubishi (Japan)
Air Switch	Schneider（France）
Contactor	Schneider（France）
Thermal Relay	Schneider（France）
Intermediate Relay	Omron（Japan）
Switch Power Supply	Omron（Japan）
Touch Screen Operation Panel	Delta （Taiwan）
Frequency Converter	Delta （Taiwan）
Servo Motor	Delta （Taiwan）
Reducer	Siemens (Germany)
Forming Group Linear Slide Rail	SLM （Germany）
Bottle Preform Detection Switch	Keyence（USA）
