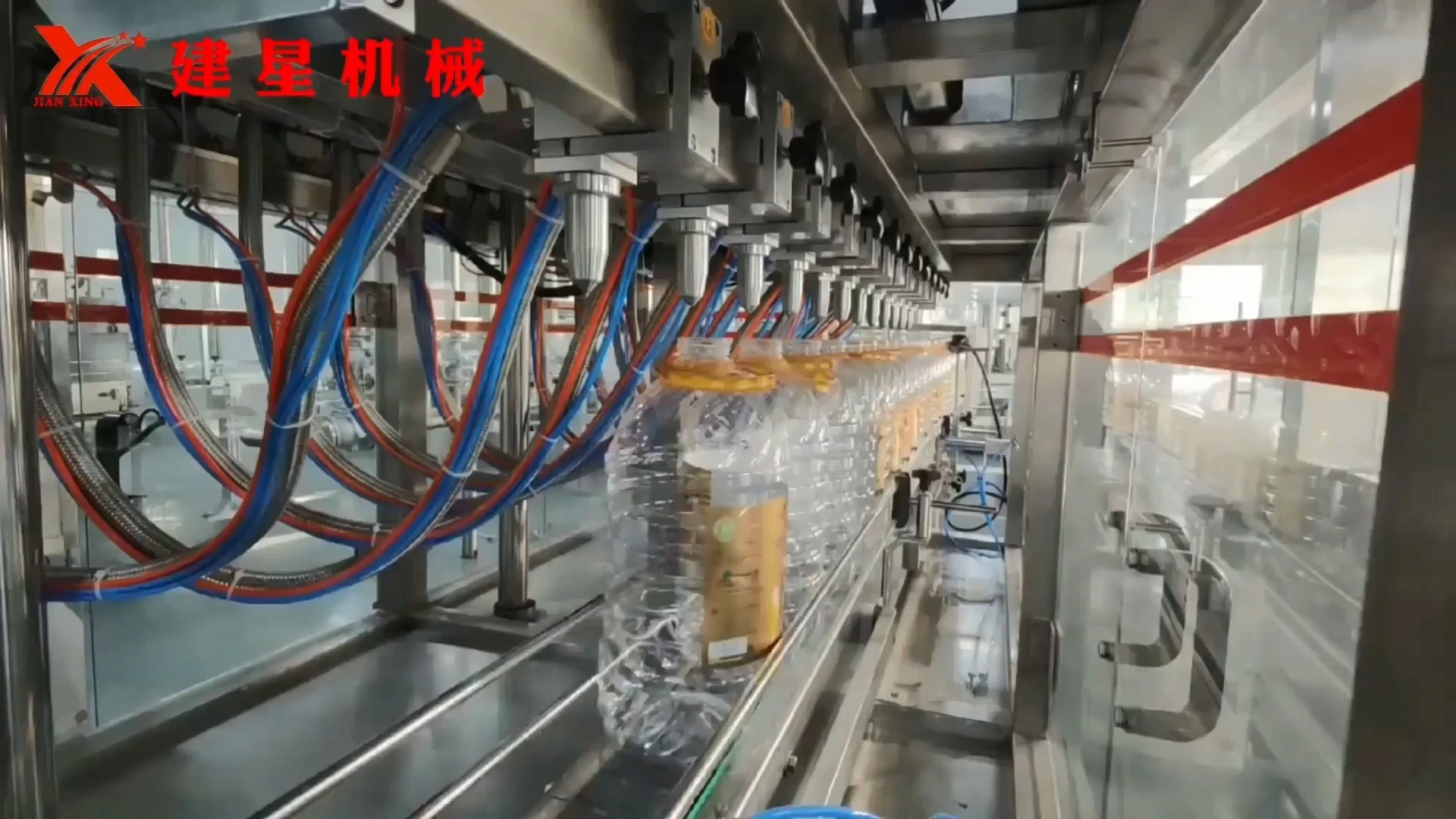

Automatic High-accuracy Flowmeter Based Linear Filling Machine

This machine is mainly made of 304 stainless steel material, which is durable and of stable quality. Because we use a combination of stainless steel and tempered glass in the appearance, it is easy to maintain and has a certain dust-proof filling effect. Adopting a PLC control system for real-time monitoring of the filling process. The machine adopts our tailor-made high-precision waist wheel flowmeter which specializes in edible oil filling to reduce filling deviation and increase filling accuracy, which is technically superior to its competitors in the industry.

Inquiry

Write a Review

Product Model

Model	JX-02A	JX-04A	JX-06A	JX-08A	JX-10A	JX-12A
Filling Nozzles	2	4	6	8	10	12
Capacity (Based on 1L)	350-500BPH	700-900BPH	1000-1200BPH	1200-1500BPH	1500-1800BPH	1800-2200BPH
Capacity (Based on 5L)	350-420BPH	700-840BPH	1000-1100BPH	1200-1400BPH	1500-1650BPH	1700-2000BPH
Filling Range	1L~5L	1L~5L	1L~5L	1L~5L	1L~5L	1L~5L
Filling Accuracy	≤0.2%	≤0.2%	≤0.2%	≤0.2%	≤0.2%	≤0.2%
Model	JX-02B	JX-04B	JX-06B	JX-08B	JX-10B	JX-12B
Filling Nozzles	2	4	6	8	10	12
Capacity (Based on 5L)	350-420BPH	700-840BPH	1000-1100BPH	1200-1400BPH	1500-1650BPH	1700-2000BPH
Capacity (Based on 20L)	200-250BPH	400-450BPH	550-650BPH	700-850BPH	900-1000BPH	1000-1200BPH
Filling Range	5L~25L	5L~25L	5L~25L	5L~25L	5L~25L	5L~25L
Filling Accuracy (Based on 5L)	≤0.2%	≤0.2%	≤0.2%	≤0.2%	≤0.2%	≤0.2%
Model	JX-02C	JX-04C	JX-06C	JX-08C	JX-10C	JX-12C
Filling Nozzles	2	4	6	8	10	12
Capacity (Based on 1L)	350-500BPH	700-900BPH	1000-1200BPH	1200-1500BPH	1500-1800BPH	1800-2200BPH
Filling Range	0.1L~2.5L	0.1L~2.5L	0.1L~2.5L	0.1L~2.5L	0.1L~2.5L	0.1L~2.5L
Filling Accuracy	≤0.2%	≤0.2%	≤0.2%	≤0.2%	≤0.2%	≤0.2%
Model	JX-02D	JX-04D	JX-06D	JX-08D	JX-10D	JX-12D
Filling Nozzles	2	4	6	8	10	12
Capacity (Based on 5L)	350-420BPH	700-840BPH	1000-1100BPH	1200-1400BPH	1500-1650BPH	1700-2000BPH
Capacity (Based on 20L)	200-250BPH	400-450BPH	550-650BPH	700-850BPH	900-1000BPH	1000-1200BPH
Filling Range	1L~25L	1L~25L	1L~25L	1L~25L	1L~25L	1L~25L
Filling Accuracy (Based on 5L)	≤0.2%	≤0.2%	≤0.2%	≤0.2%	≤0.2%	≤0.2%
Applicable Containers	PET bottle, HDPE bottle, PE bottle, tin can, glass bottle
Applicable Liquids	edible oil, lubricant oil, engine oil
Power	2KW	2KW	3KW	3KW	4KW	4KW
Air Pressure	0.6~0.8Mpa	0.6~0.8Mpa	0.6~0.8Mpa	0.6~0.8Mpa	0.6~0.8Mpa	0.6~0.8Mpa
Size	The actual size is customized according to the customer's sample containers and subject to the actual product.

Model	JX-02R	JX-04R	/	/	/	/
Filling Nozzles	2	4	/	/	/	/
Capacity (Based on 20L)	200-250BPH	300-450BPH	/	/	/	/
Filling Range	15L~25L	15L~25L	/	/	/	/
Filling Accuracy (Based on 20L)	≤0.2%	≤0.2%	/	/	/	/
Applicable Containers	flexible packaging bags
Applicable Liquids	edible oil, lubricant oil, engine oil
Power	2KW	2KW	/	/	/	/
Air Pressure	0.6~0.8Mpa	0.6~0.8Mpa	/	/	/	/
Size	The actual size is customized according to the customer's sample containers and subject to the actual product.

Technical Parameter

Measurement Mode	304 Stainless steel high-precision waist wheel flowmeter
Conversion Adjustment	Data storage and recovery system
Control System	Mitsubishi
Drip-proof System	Vacuum resorption drip-proof system
Fault Alarm	Three-color alarm light+buzzing alarm sound
Filling Speed Control Method	Variable frequency acceleration and deceleration
Speed Level	Acceleration -- fast --slow
Lifting Method	Electric lifting
Appearance	Stainless steel + tempering glass door (Dust free filling)
Oil Storage Tank and Liquid Material Pipeline	Stainless steel
High Level Tank	Liquid level control
Pipeline Pump	Built-in pipeline connection

Main Features

Automatic High-accuracy Flowmeter Based Linear Filling Machine 15

This machine is mainly made of 304 stainless steel material, which is durable and of stable quality.

Automatic High-accuracy Flowmeter Based Linear Filling Machine 16

Because we use a combination of stainless steel and tempered glass in the appearance, it is easy to maintain and has a certain dust-proof filling effect.

Automatic High-accuracy Flowmeter Based Linear Filling Machine 17

Adopting a PLC control system for real-time monitoring of the filling process.

Automatic High-accuracy Flowmeter Based Linear Filling Machine 18

The machine adopts our tailor-made high-precision waist wheel flowmeter which specializes in edible oil filling to reduce filling deviation and increase filling accuracy, which is technically superior to its competitors in the industry.

Filling nozzles adopt lifting devices and vacuum resorption systems so that they are anti-dripping. And each filling nozzle can be individually shielded without affecting the use of other filling nozzles. And the distance between the filling nozzles can be adjusted to fit bottles of different capacities.

Equipped with a built-in frequency conversion system, there are three speed levels of filling: full speed filling, medium speed filling, and slow self flow filling, to prevent the phenomenon of oil overflow.

Due to the liquid level control inside the high-level tank, it ensures more stability of oil pressure and filling accuracy.

The internal oil pipeline adopts 304 stainless steel round pipes and 304 stainless steel corrugated pipes to eliminate plasticizers and ensure oil safety.

Intelligent human-computer interaction, convenient and flexible operation. The data storage system can store and remember multiple filling range parameters, making it convenient and fast to switch filling ranges.

Main Configuration

PLC	Mitsubishi (Japan)
Flowmeter +Filter	304 Stainless steel high-precision waist wheel flowmeter
Touch Screen	MCGS
Solenoid Valve	SMC（Japan）
Cylinder	AirTAC（Taiwan)
Gas Source Triplet	AirTAC（Taiwan)
Photoelectric Switch	Omron（Japan）
Vacuum Generator	SMC（Japan）
Contactor	Schneider（France）
Thermal Relay	Schneider（France）
Switch Power Supply	Schneider（France）
Leakage Switch	Schneider（France）
Unipolar Air Switch	Schneider（France）
Photoelectric Switch	Omron（Japan）
